uAvionix AV-30-E Experimental 3-Inch Digital Multi-Function Display UAX-90051-01

42839

Low stock

$1,849.00

Benefits

Digital Precision Retrofit: Upgrades legacy vacuum-driven instruments to a customizable digital display for attitude and directional gyro functions.
Primary Flight Indications: Provides high-fidelity data for primary attitude, slip, and direction in a standard 3-inch format.
Integrated Safety Monitoring: Includes a probeless Angle of Attack (AoA) system and a +8 / -8 G-meter to track critical performance limits.
Advanced Navigation Overlay: Features a GPS navigational data overlay with HSI, 360 Rose, and Arc Map modes for superior situational awareness.
Consolidated Air Data: Displays indicated airspeed (KTS/MPH), altitude, vertical trend, and density altitude in a single interface.
Customizable Audio Alerts: Equipped with programmable audio alerts for AoA, G-load, and roll limits to keep the pilot informed.
Reliable Battery Backup: Features an internal battery providing a typical 2-hour operation window during emergency power loss.

Shipping & Delivery

Free Shipping: Enjoy FREE Ground Shipping on all Continental U.S. orders over $100. We cover the cost to get your gear to your door!
Rapid Dispatch: Orders placed by 3 PM ET (Mon-Fri) ship the same business day for the fastest possible delivery.
Control Your Delivery: Select your ideal delivery speed at checkout, from cost-effective economy options to guaranteed express delivery.
Upfront Pricing: See all final shipping costs and estimated delivery dates during checkout; no surprises after you purchase.
Stay Informed: A tracking link is automatically emailed the moment your package leaves our warehouse.
Expert Support: Have questions about shipping or specific gear? Our expert support team is ready to assist you.

Returns

30-Day Return Window: Most items may be returned within 30 days of purchase for a refund of the purchase price. [Read Full Policy]
Free Exchange Shipping: We offer FREE return shipping within the continental US for exchanges or store credit. (Excludes Flight Sim Hardware, Luggage, & Oversized Items).
Standard Refunds: If you prefer a refund to your original payment method, you are responsible for the return shipping costs.
Simple RMA Process: Contact us for a Return Merchandise Authorization (RMA) number. To ensure a timely refund, returns must be postmarked within 7 business days of RMA issuance.
Condition Requirements: Returns must be in new, resalable condition with original packaging, UPC codes, manuals, and all accessories/promotional items.

Cleared for Clear Skies

A smooth journey from cart to checkout. Your transaction is protected every step of the way.

Learn How We Keep You Secure

The uAvionix AV-30-E (UAX-90051-01) is the ultimate digital upgrade for experimental aircraft, designed to replace aging mechanical gauges with high-precision electronics. This 3-inch multi-function display allows you to move away from unreliable vacuum systems, offering customizable layouts for attitude and directional gyro indications. Whether you are looking for a primary flight instrument or a highly capable backup, the AV-30-E provides a wealth of data including True Airspeed (TAS), Outside Air Temperature (OAT), and bus voltage, all within a sunlight-readable, modern interface.

Engineered specifically for experimental applications, the AV-30-E enhances safety with its proactive, probeless Angle of Attack (AoA) system and dedicated altitude alerter. Pilots can fully personalize their experience by adjusting colors, fonts, and layouts to match their specific cockpit aesthetic. With integrated GPS HSI and Map modes, along with a 2-hour internal battery backup, the AV-30-E ensures you have the critical information and redundancy needed for every mission.

uAvionix AV-30-E Experimental 3-Inch Digital Multi-Function Display UAX-90051-01

$1,849.00

Frequently Asked Questions

What aircraft is the uAvionix AV-30-E approved for?

The AV-30-E is engineered specifically for experimental aircraft. It is not certified for standard-category aircraft under a traditional STC. If your aircraft is registered as an experimental amateur-built or experimental exhibition, the AV-30-E is designed for that class of installation. Always verify with your local FSDO and uAvionix documentation for your specific build.

What does the AV-30-E replace in the panel?

It is designed to replace aging mechanical gauges, including vacuum-driven attitude indicators and directional gyros. By swapping out unreliable vacuum instruments for a solid-state digital display, you eliminate the vacuum system dependency and gain a more accurate, customizable primary flight display in the same standard 3-inch instrument hole.

What primary flight data does the AV-30-E display?

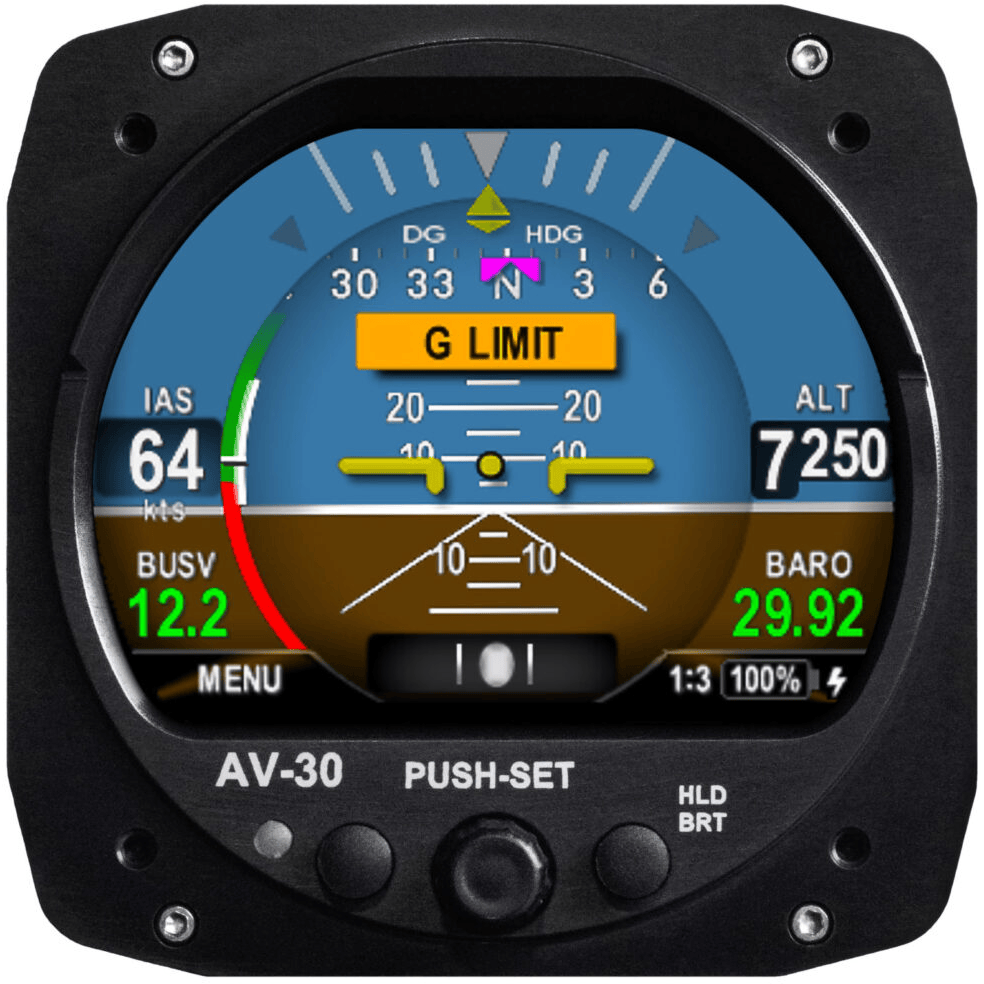

The AV-30-E displays attitude and directional gyro indications, indicated airspeed in knots or MPH, altitude, vertical trend, density altitude, True Airspeed, Outside Air Temperature, and bus voltage. All of this appears on a single sunlight-readable 3-inch screen, consolidating multiple legacy gauges into one modern interface.

Does it include an Angle of Attack system?

Yes. The AV-30-E includes a proactive, probeless Angle of Attack system. Because it requires no external AoA probe installation, setup is straightforward. The system presents AoA information visually on the display, giving pilots an additional safety layer against inadvertent stall onset, which is particularly valuable during slow-flight and approach phases.

What navigation modes does the AV-30-E support?

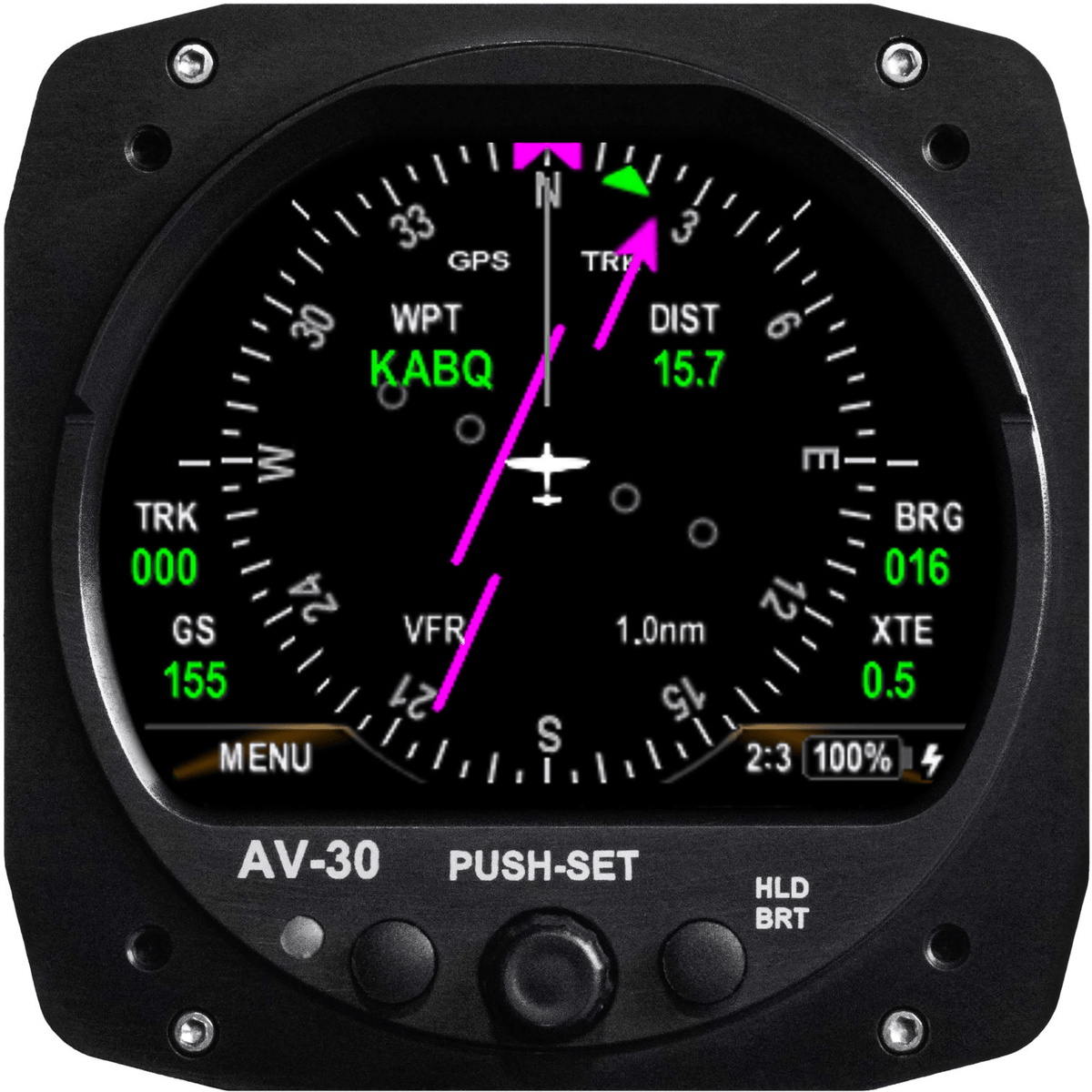

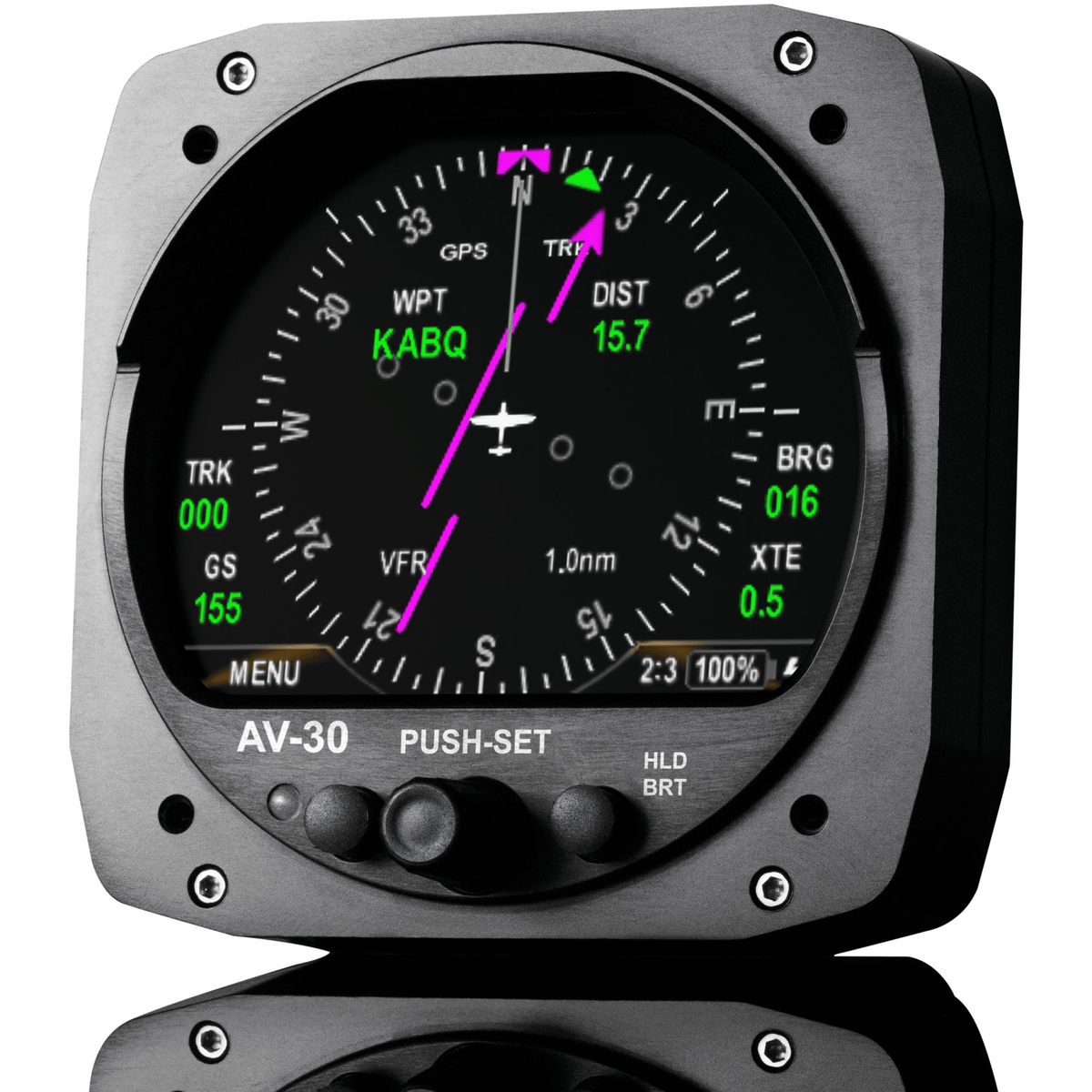

It includes integrated GPS HSI, 360 Rose, and Arc Map modes for GPS navigational data overlay. When connected to a compatible GPS source, the display can show your track, course deviation, and bearing in a format similar to a conventional HSI, improving situational awareness without requiring a separate navigation display.

What happens if aircraft power is lost?

The AV-30-E has an internal battery backup that provides approximately 2 hours of typical operation during an emergency power loss. This redundancy is a meaningful safety feature, keeping your primary attitude and flight data visible even if the aircraft electrical bus fails. Battery backup duration is approximate; actual performance may vary.

Can I customize how the display looks?

Yes. Pilots can adjust colors, fonts, and screen layouts to match their cockpit aesthetic and personal preferences. This level of personalization goes beyond fixed-display legacy instruments and lets you configure the AV-30-E to suit your flying style, whether you prefer a traditional or modern glass-cockpit look.

Does it include an altitude alerter?

Yes. The AV-30-E has a dedicated altitude alerter that can be configured to notify you as you approach a preselected altitude. This adds a workload-reduction benefit during climbs and descents and is particularly useful during IFR operations in experimental aircraft where managing multiple tasks simultaneously is demanding.

What is the part number for this unit?

The uAvionix AV-30-E Experimental unit carries part number UAX-90051-01. Use this when ordering, referencing installation documentation, or registering the unit with uAvionix.
