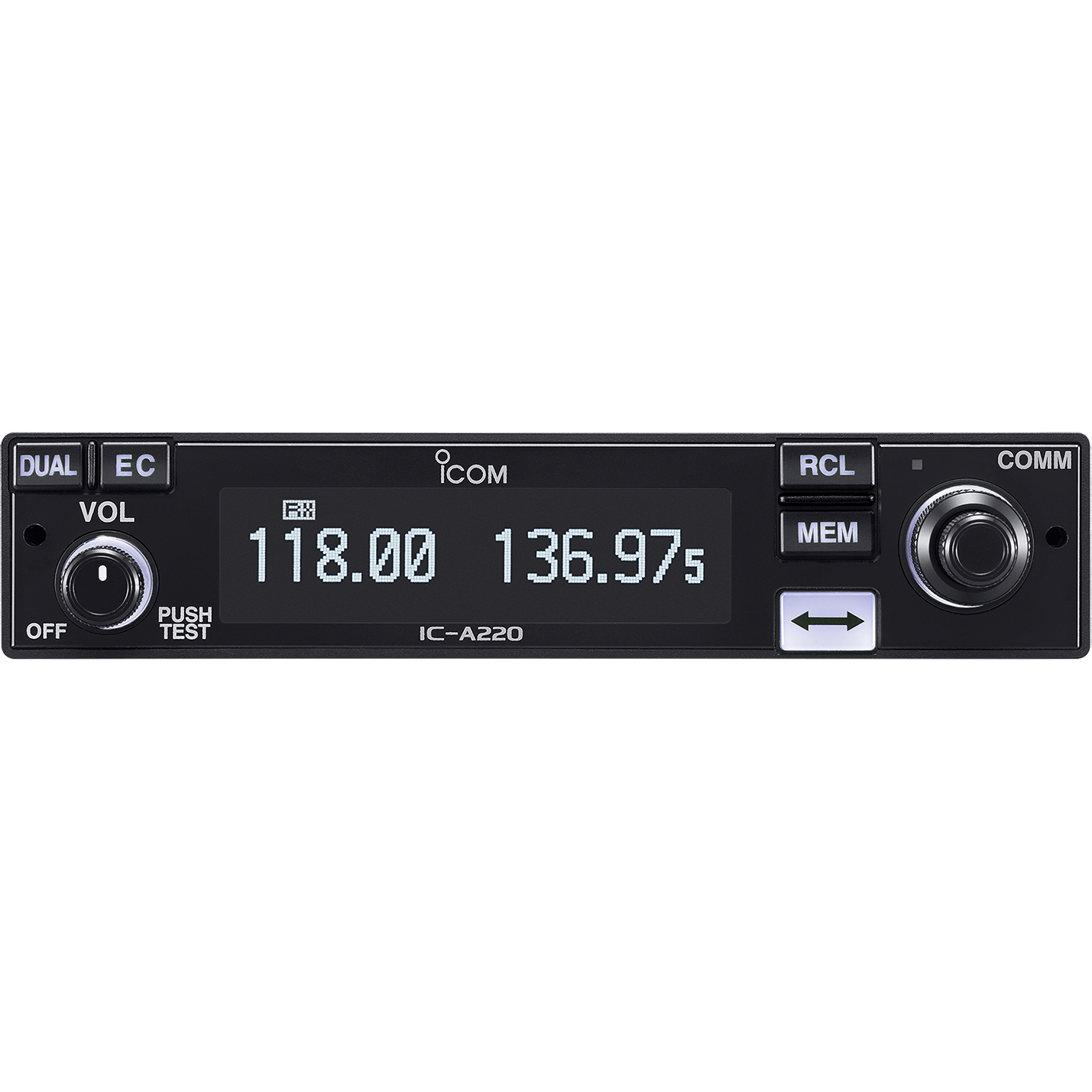

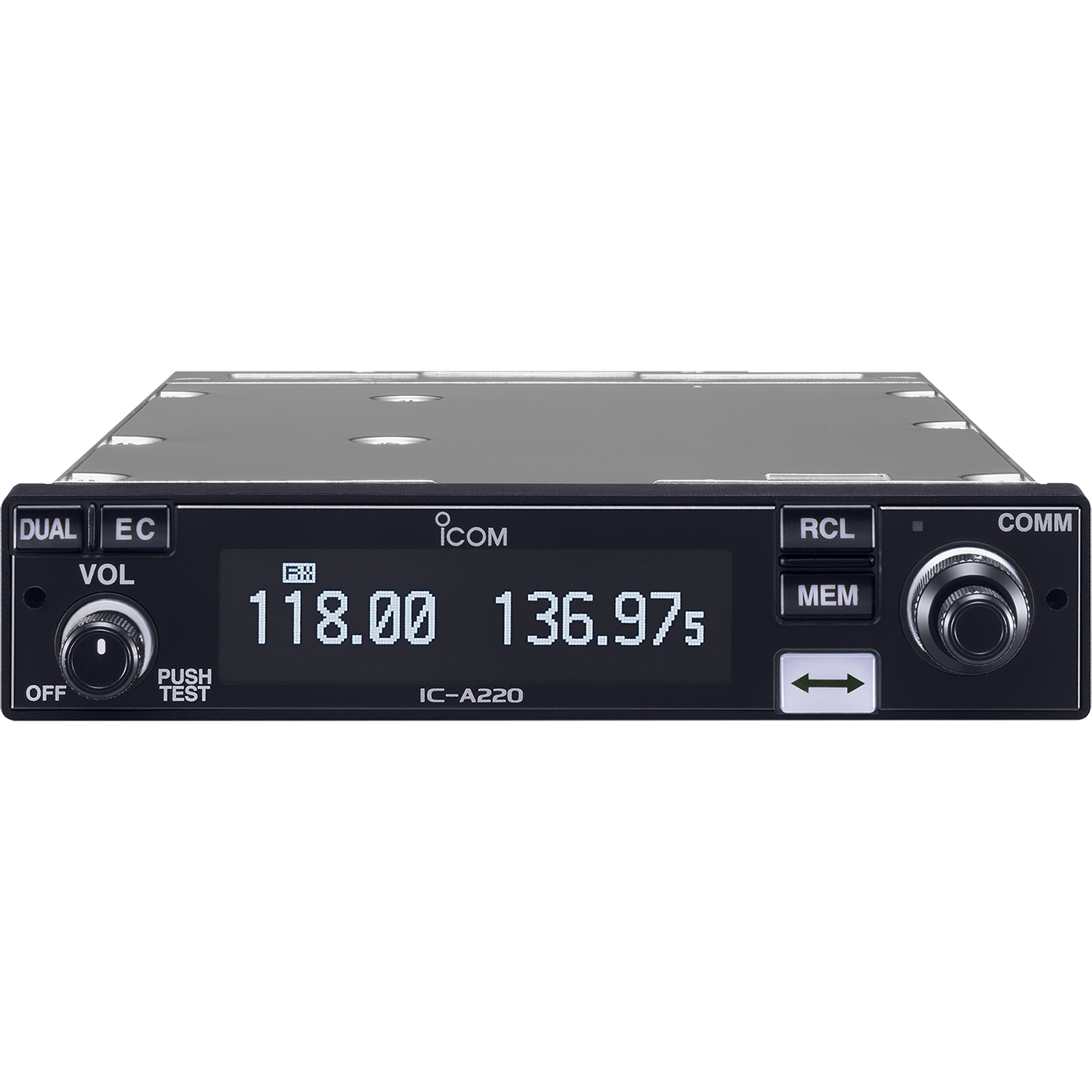

Icom A220T TSO'd Panel Mount VHF Air Band Transceiver with OLED Display (8.33/25 kHz)

The TSO-Certified Upgrade Your Cockpit Has Been Waiting For

Introducing the Icom IC-A220T—the TSO-approved version of the legendary A220 panel mount transceiver. For years, experimental and LSA pilots have trusted the A220 for its performance and reliability. Now, owners of certified Part 23 aircraft can experience the same cutting-edge technology. The A220T combines a stunningly bright OLED display, intuitive operation, and future-proof 8.33 kHz compliance into a slim, easy-to-install unit, making it the premier choice for your next avionics upgrade.

Unrivaled Clarity with a Revolutionary OLED Display

Leave legacy LCD screens in the past. The A220T features a brilliant white OLED (Organic Light Emitting Diode) display that is fundamentally superior. Because each pixel generates its own light, the display delivers unparalleled contrast, razor-sharp text, and an almost 180-degree viewing angle. It’s exceptionally bright and clear, remaining perfectly readable in the most intense direct sunlight. White backlighting on the large, tactile keys matches the display, ensuring perfect visibility for seamless night VFR operations.

Designed for the Pilot: Reducing Workload & Enhancing Safety

Every feature of the A220T is engineered to make your life in the cockpit easier. The large, well-spaced buttons and oversized "FLIP-FLOP" frequency switch are easy to operate, even in turbulence. The intelligent auto squelch function automatically adjusts to the noise level, silencing static without cutting out weak, important transmissions. An auto-dimmer with a high-sensitivity sensor keeps the display at the perfect brightness, or you can link it directly to your aircraft’s dimming bus for unified control.

Integrated 2-Place Intercom Saves Panel Space & Cost

The IC-A220T features a built-in, voice-activated intercom, allowing for clear communication between the pilot and co-pilot. With adjustable audio and squelch levels, this integrated function eliminates the need for a separate intercom unit, saving valuable panel real estate, reducing installation complexity, and lowering overall upgrade costs.

Frequently Asked Questions (FAQ) about the Icom A220T

1. What is the main difference between the original A220 and this new A220T model?

The primary difference is the TSO (Technical Standard Order) certification. The 'T' in A220T signifies that this version is TSO-approved under TSO-C169a and TSO-C128a. This makes it fully legal for use as a primary COM radio in certified general aviation (Part 23) aircraft, such as those from Cessna, Piper, Beechcraft, and Mooney.

2. Is this radio compliant with 8.33 kHz channel spacing mandates?

Yes. The Icom A220T is fully compliant and easily switchable between 8.33 kHz and 25 kHz channel spacing, ensuring you meet current and future airspace requirements both in the U.S. and abroad.

3. How readable is the screen in a bright, sunny cockpit?

The OLED display is one of its best features. Unlike traditional LCDs that can wash out, the OLED screen is exceptionally bright and maintains high contrast in direct sunlight, making frequencies and information easy to read at a glance.

4. Does this radio require a separate, dedicated intercom system?

No. The A220T includes a built-in, voice-activated 2-place intercom with adjustable audio and squelch. This saves you the cost and panel space of installing a separate unit.

5. What aircraft electrical systems is the A220T compatible with?

It is designed for maximum flexibility and works with both 13.8V DC and 27.5V DC electrical systems without the need for any external voltage converters.

6. How difficult is the installation process?

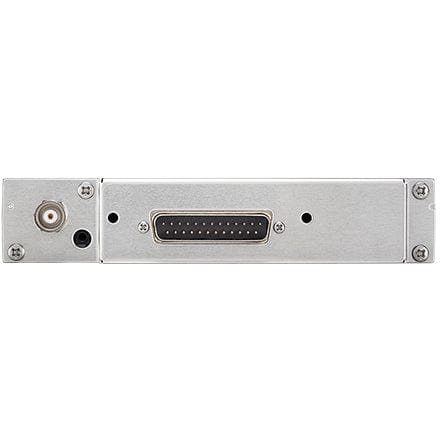

The A220T is designed for straightforward installation. Its slim 1.3-inch (33mm) height allows it to fit in tight panels. It uses a standard D-SUB 25-pin connector, making it an ideal slide-in replacement for many older radios or a simple choice for new installations.

Key Features:

• TSO-C169a and TSO-C128a Approved for Part 23 aircraft.
• High-Visibility OLED Display for superior readability in all lighting conditions.
• Dual 8.33 kHz & 25 kHz Channel Spacing for global compliance.
• Built-in 2-Place Voice-Activated Intercom simplifies your panel.
• Easy "Flip-Flop" Frequency Recall with a large, dedicated button.
• Intelligent Auto & Manual Squelch for clear, noise-free audio.
• Auto Dimmer & External Dimmer Control for perfect brightness.

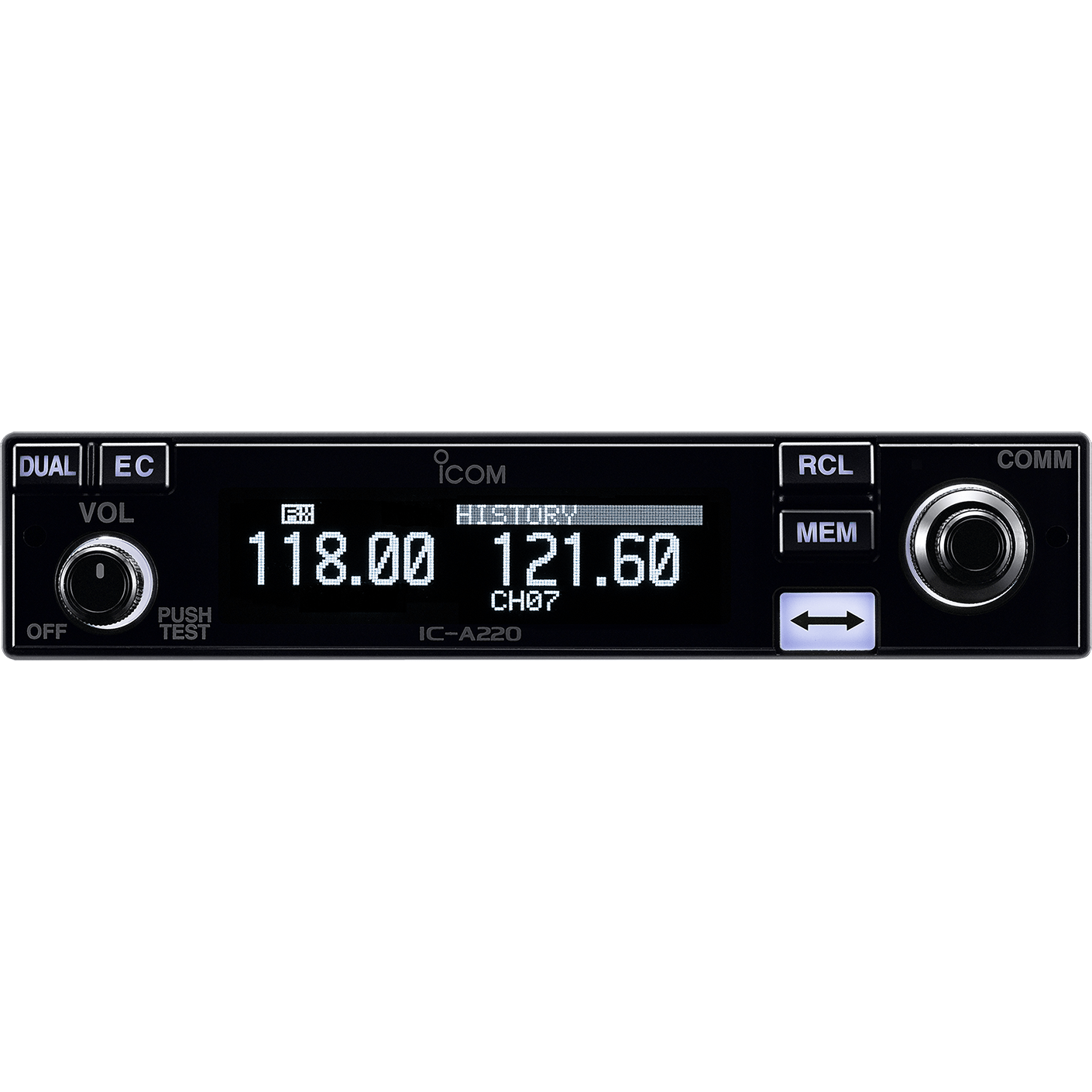

• 20 Memory Channels plus 20 history channels for quick access.
• One-Touch 121.5 MHz Emergency Frequency Access.
• Durable, MIL-SPEC construction for reliability in harsh conditions.
• Slim Profile (1.3") for easy installation in tight panels.

Technical Specifications:

• Frequency Coverage: 118.000–136.992 MHz
• Power Supply: 13.8V / 27.5V DC (Negative ground)
• Transmit Power: 8 W (Carrier Power)
• Channel Spacing: 8.33 kHz / 25 kHz
• Memory Channels: 20 Regular, 50 Group, 20 History, 10 WX
• Dimensions (W×H×D): 6.3" × 1.34" × 10.67" (160 × 34 × 271 mm)
• Weight: 2.65 lb (1.2 kg)
• Certification: TSO-C128a, TSO-C169a, ETSO compatible

What's In The Box:

• IC-A220T Transceiver
• Mounting Bracket Kit
• Installation Manual
