Pilot USA H10-76 Military to Civilian Conversion Kit

What does the Pilot USA H10-76 conversion kit include?

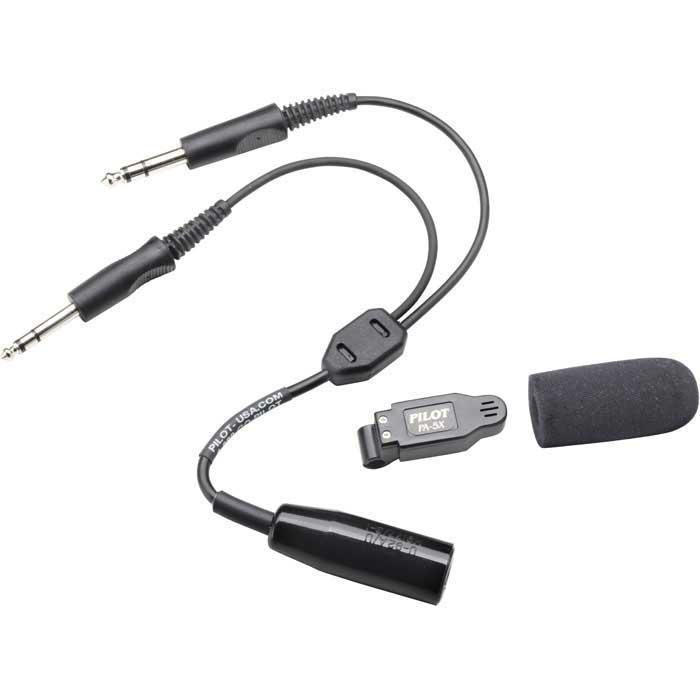

The kit is a complete solution for adapting a David Clark H10-76 military headset to general aviation use. It includes a high-impedance, noise-canceling electret microphone that replaces the original low-impedance dynamic mic, plus an adapter that converts the military U-174/U connector to standard civilian dual plugs. A protective foam microphone cover is also included.

Which David Clark headset is this kit designed for?

This conversion kit is designed specifically for the David Clark H10-76 military headset. It is built around that model's microphone and connector configuration, so it is intended for the H10-76 rather than other David Clark models. If you are unsure which David Clark model you own, check the headset label before ordering, or contact us and we will help.

Will this kit let me use my David Clark military headset in a Cessna or Piper?

Yes. The kit is built so a David Clark H10-76 headset can be used in civilian general aviation aircraft. The included adapter converts the single military-style U-174/U connector to the standard dual plugs used in aircraft like the Cessna and Piper Cherokee, and the electret microphone is matched to civilian cockpit radio systems for clear communication.

Why does the kit replace the microphone instead of just adding a plug adapter?

Military H10-76 headsets use a low-impedance dynamic microphone, while civilian general aviation radios expect a high-impedance microphone. Adding only a plug adapter can leave audio weak or unclear. This kit replaces the dynamic mic with a high-impedance noise-canceling electret mic designed for civilian cockpits, so your transmissions come through clearly.

What civilian plugs does the adapter convert my headset to?

The adapter converts the headset's single military-style U-174/U connector into the two standard general aviation plugs, a separate phone plug and microphone plug. These are the twin plugs found in most light aircraft panels, such as a Cessna or Piper. The conversion lets the headset connect directly to a standard civilian intercom and radio system.

Does this kit also work with the David Clark H10-76XL?

This conversion kit is built for the David Clark H10-76. It has not been confirmed for the H10-76XL, so if you own the XL version please check the microphone and connector type on your headset and contact us before ordering. We will confirm whether this kit is the correct fit for you.

Will this kit work with other David Clark models like the H10-36 or H6030?

This kit is built around the H10-76 microphone and U-174/U military connector design, so it is intended for that model rather than other David Clark headsets such as the H10-36 or H6030. Those headsets use different wiring or are already set up for civilian use. Confirm your exact model before ordering, or contact us if you are unsure.

Is the conversion reversible if I need to fly military aircraft again?

Yes. This kit features a reversible design, so pilots can switch back to the original military configuration when needed. That flexibility lets you move one trusted headset between different flight environments instead of buying a second headset, which makes it a practical option for pilots who fly in more than one type of cockpit.

How hard is the conversion to install?

The conversion is straightforward. Replacing the microphone involves removing a couple of small screws, so a small screwdriver like the kind in an eyeglass repair kit is helpful. The plug adapter simply attaches to convert the single connector to dual plugs. Pilots who have done it describe the swap as simple and quick.
